    Corrugated Carton Machine Spare Parts For High And Low Speed Industrial Machine Knives

    Ask Lasest Price
    Brand Name : Passion
    Model Number : 270*168.3*1.4
    Price : USD 50-70/pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS per month
    Delivery Time : 5-10days
    • Product Details
    • Company Profile

    Corrugated Carton Machine Spare Parts For High And Low Speed Industrial Machine Knives

    corrugated carton machine spare parts for high and low speed industrial machine knives


    Application

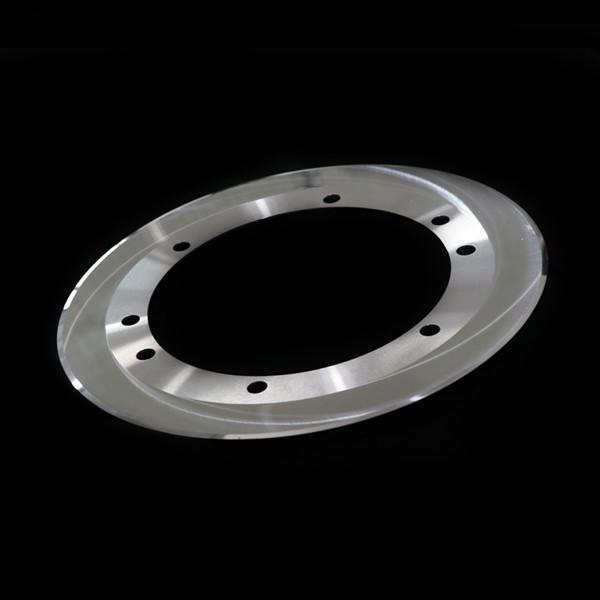

    Slitting blade is one of our star products. It is used for slitting process of corrugated paper. Regular stocks are always kept for fast delivery, besides we customize knives which are developed for special applications or new machines, exactly in accordance with the customer's drawing & requirements.


    Advantage

    1,Suitable for corrugated paperboard machines,like TCY, Fosber, Mitsubishi, K&M, Marquip, Isowa, Oranda, Peters , BHS, Agnati, and Justu etc.
    2,Long service life
    low friction coefficient and long service life, each blade detects inbound shipments, ensuring quality without worry.
    3,Hardness Guarantee
    The raw materials are heat treated, vacuum treated, and the hardness is higher.
    Heat treatment in your own factory to ensure product stability.
    4,Choose our price advantage
    Factory direct sales, we have a price advantage:
    1. The production process is controlled by our own factory, thus reducing the production cost;
    2. We develop the factory direct sales model, thereby reducing the cost of middlemen.
    CNC grinding, long-lasting sharpness, high cutting efficiency


    Specification


    MaterialWC+CO, YG12X YG13X
    Flatness0.003mm, or customer customize
    TYpe of edgesingle or double edge available
    HRA85-93 HRA
    Surface roughnessRa0.2
    Laser engravingDone as requirement
    Package20pcs/carton, 25pcs/carton, 10pcs/carton
    Main sizeOD(mm)ID(mm)thickness(mm)
    2501051.3
    GuaranteeCarbide razor slitters include standard and non-standard sizes. Carbide slitters for cardboard are made from 100% virgin tungsten carbide, which with minimum tolerances: ground,lapped and polished surfaces in the μm range.
    TechnoloyVirgin WC owder - mix with cobalt powder - granulation -ready to press powder --press
    Pressed blank --HIP sintering -Blank -Machining -Finished product -Inspection and packing


    "Passion" Tool


    The Thin Blade (Paperboard slitting and pressing line machines) produced by our company is good appearance, good structure, with good design, easy to operation, easy to maintenance, and with competitive price.
    The paperboard slitting and pressing machine use thin blade to cutting, the edge of the knives are very sharp, this makes the paperboard after cutting are very good edge, this improves the appearance and quality of the paperboard. Make the paperboard easier for entering printer machine, and improves the quality of the carton. The design of this machine use pressing and pulling paperboard with double wheels, can change wheels base. This means the machines can press and slitting, also can pull paper in front and back, can slitting stably. This is perfect machines for manufacturers of cartons.


    Company profile



    Packing



    FAQ


    1. How can I get the sample to check your quality?

    After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.


    2. How can I get the price?

    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.


    3. What is your term of delivery?

    We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost-effective for you.


    4. What about the lead time for the mass production?

    Honestly, it depends on the order quantity and the season you place the order.


    * We are here to waiting for you, Please do not hesitate to contact us.
